Control Transformer

Control transformer is an isolation transformer which is used generally in an electronic circuit that requires constant voltage with a low power or volt-amp rating. Control transformers are designed to provide a high degree of secondary voltage regulation for a short period overload condition, which is called or referred to as inrush. Control transformers are sometime called industrial control transformers, machine tool transformers, or control power transformers.

Control transformers are supplying all kinds of electrical circuits like measuring and control circuits, power electronic circuits, control circuits, switch gear and distribution systems, machines to step up or step down transformer.

Control Transformer

Typical applications

To supply electrical consumers of all kinds, e.g. measuring and control instruments, power electronic modules, etc. Customized specification and dimensions ensure optimal application.

Specification

  • Output VA range

    50 VA to 25KVA

  • Input voltage

    Max. 750V

  • Output voltage

    Max. 750V

  • Frequency

    50 / 60 Hz

  • Vector group

    1 Phase

  • Protection class

    I

  • Protection index

    IP00

  • Insulation class

    F

  • Ambient temperature

    Max. 40 Degc

  • Efficiency

    80 to 95 %

  • Reference Standards

    IS12051 / IEC61558-2-4 / IS2026 / IS11171

Construction

  • Open construction (IP00, incorporation up to max. IP 23)
  • Separated windings
  • With more severe requirements on test voltages and creepage distance and clearance in air because these transformers are often exposed to overvoltage.
  • Input-side matching taps.
  • Connections to safe-to-touch screw / screw less terminals in accordance with IEC61558.
  • Additional clamp type terminal on request.
  • High-grade, vacuum impregnation in polyester impregnating resin.
  • Special versions available on request.

Applications

Control voltage circuits, Functional low voltage, Protective separation, to supply electrical consumers of all kinds, e.g. measuring and control instruments, power electronic modules, etc. Customized specification and dimensions ensure optimal application.

VA Weight (KGS) Length Width Height X Y Figure Type
25 1 56 50 110 46 0 1
50 1.8 75 85 125 55 65 1
75 2.1 100 75 130 75 55 1
100 2.8 100 90 130 75 67 1
125 2.8 100 90 130 75 67 1
150 3.5 130 85 155 100 67 1
200 3.95 130 85 155 100 71 1
250 4.6 130 95 155 100 77 1
300 4.5 140 95 175 110 64 1
400 5.8 140 110 175 110 77 1
450 6.4 140 115 175 110 84 1
500 8 150 110 195 120 85 1
550 8.35 150 110 195 120 85 1
600 9.2 150 110 195 120 91 1
650 10.2 150 115 195 120 98 1
700 10.2 150 115 195 120 98 1
750 11.1 150 120 195 120 104 1
800 11.1 150 120 195 120 104 1
1000 12.1 150 130 195 120 110 1
1250 14.9 200 130 220 150 80 2
1500 17.4 200 140 220 150 92 2
1750 19.9 200 150 220 150 105 2
2000 17.9 230 120 230 200 96 2
2500 21.4 230 140 230 200 109 2
3000 23.2 230 140 230 200 115 2
3500 28.4 250 150 270 190 110 2
4000 32.5 250 170 280 190 124 2
4500 35.1 250 170 280 190 129 2
5000 37.5 250 180 280 190 136 2
5500 38.9 250 190 280 190 142 2
6000 42.3 250 195 280 190 148 2
6500 44.8 250 200 280 190 155 2
7000 51.3 250 220 280 190 175 2
7500 57 250 240 280 190 192 2
8000 58.9 315 180 320 220 130 2
9000 60.4 315 180 320 220 130 2
10000 66.7 315 190 320 220 142 2

Note:

For higher rating contact us for details.

Dimension my change at the time of final design.

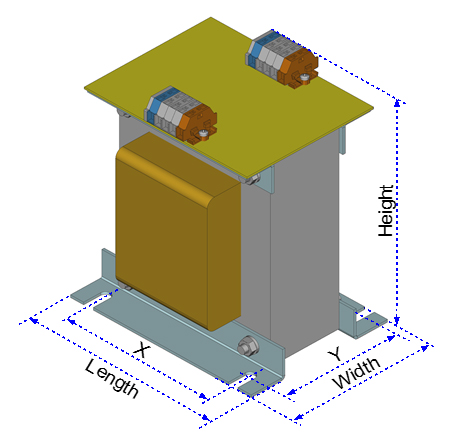

figure-1

Figure : 1

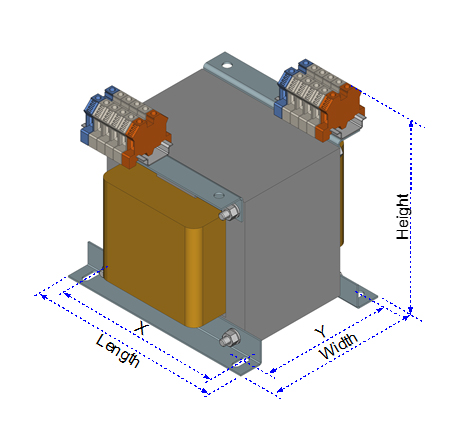

figure-2

Figure : 2
